How to install an outlet yourself

To install the outlet indoors, you need to prepare special tools. It is also necessary to prepare the workplace, namely the wall. If a tile is stuck on the wall, it must be removed at the place where the socket is to be installed. If wallpaper is pasted on the wall, they also need to be removed. After the wall is ready, you can start working.
How to install the socket yourself

The process of installing the socket

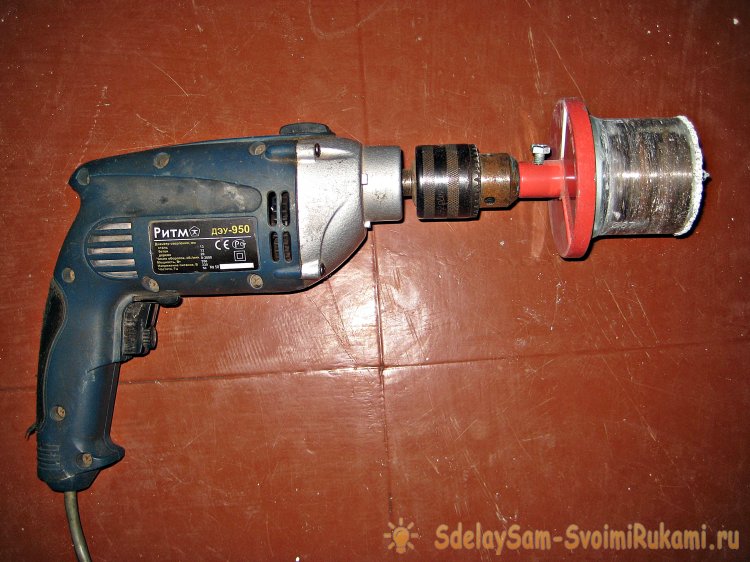

1. The first step is to prepare a working tool. To do this, wear a special cylindrical nozzle - a crown for concrete.
How to install the socket yourself

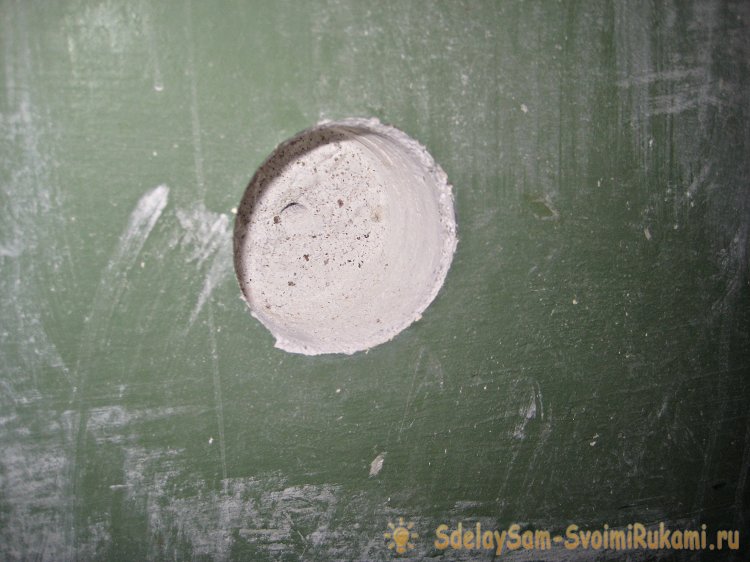

2. We make a markup of the place where the new outlet will be located. With the help of a drill we make a recess in the wall of the desired diameter. The depth of the hole must correspond to the box in which the wires will be located.
How to install a socket on your own
3. Next, it is necessary to supply the wires with electricity to the existing hole for the socket. To do this, select located next to a valid outlet. We remove the protective cover from the working outlet (in this case, we disconnect the switch in the switchboard). Then we make a recess for the wires from the working outlet to the future.
How to install a socket on your own

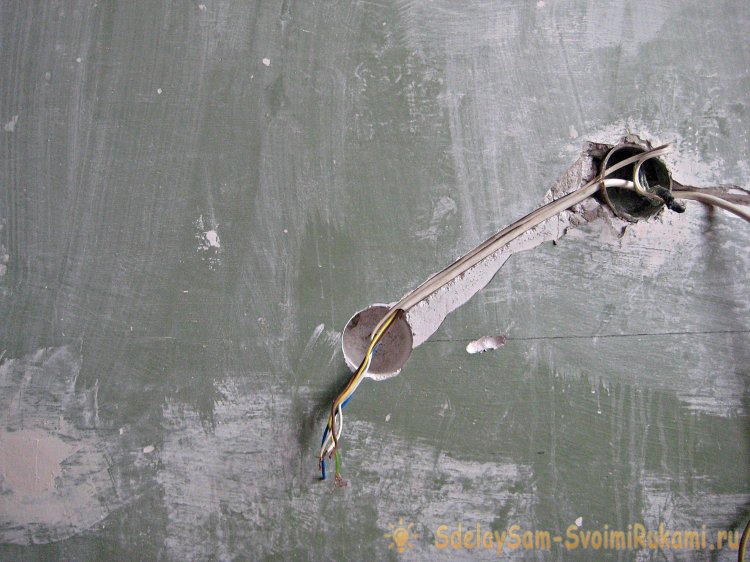

4. We attach the wires of the desired length in the working outlet. And then we lay the wires along the chute to the future outlet.
How to install a socket on your own
5. We fix the wires in the trough with the help of putty.
How to install the socket yourself

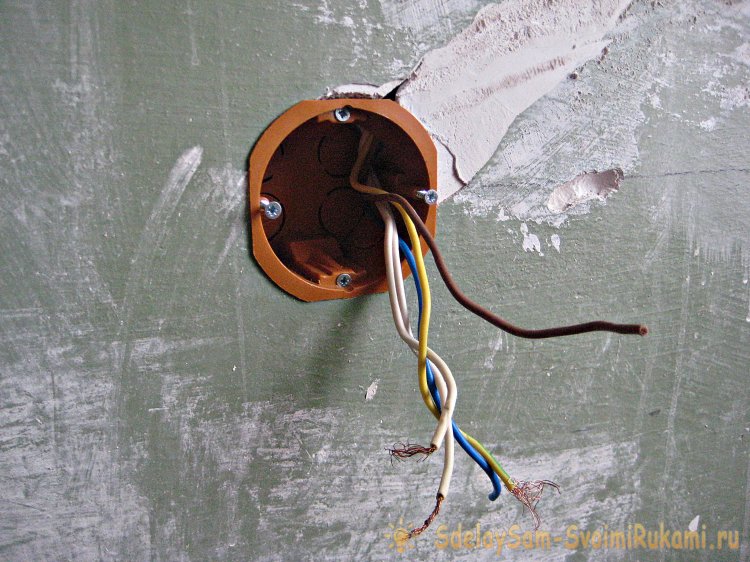

6. In the hole, which is located in the wall, install a plastic junction box. We withdraw through the box wires.
How to install the socket yourself

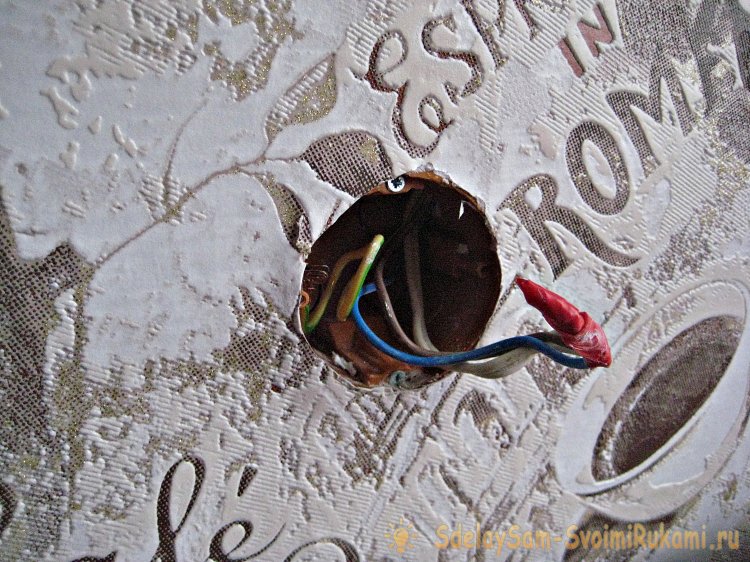

7. Place under the outlet prepared, so you need to think about the design space around the outlet.In this case, the wall will be glued wallpaper. Therefore, already at this stage you should stick wallpaper around the outlet so that everything looks beautiful and harmonious in the future. During the pasting of the wallpaper, the ends of the wiring must be insulated in order to exclude the possibility of current ingress.
How to install the socket yourself
8. For further work, the outlet must be completely disassembled. To do this, remove the top cover of the outlet, unscrewing the bolt in the middle. After that, disassemble the outlet into parts.
